Variant Networks deploys adaptive mesh infrastructure that eliminates dead zones in parking garages, apartment complexes, and commercial properties — without the cost or rigidity of traditional ISP buildouts.
Traditional networks route everything through a single access point. Mesh networks distribute intelligence across every node — so when one path degrades, traffic automatically reroutes. The result is infrastructure that heals itself.
Every node participates in routing. Signal degradation on one link triggers automatic path recalculation across the mesh — no manual intervention required.
No wall penetrations, no conduit runs, no ISP coordination. Nodes mount on existing fixtures and connect via PoE — fully reversible and regulation-friendly.
The network continuously evaluates signal strength, hop count, and interference levels — selecting the most efficient relay path in real time, not at configuration time.
Dense concrete, underground levels, and mixed-use layouts are not edge cases — they're our primary design targets.

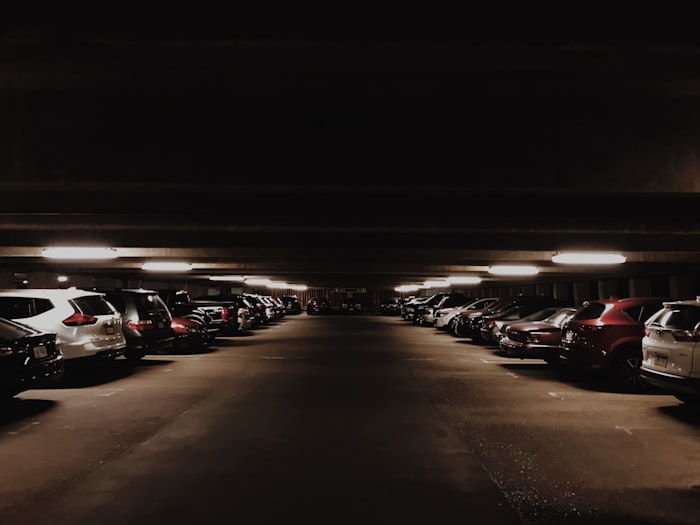

Concrete decks and steel columns scatter and absorb RF signal. Mesh nodes placed at optimal intervals maintain stable backhaul links through multi-hop paths — replacing six conventional access points with three precisely positioned nodes.
Property owners gain a managed WiFi amenity without signing ISP contracts. Residents connect at $25/month — a fraction of major carrier rates — with no throttling during peak hours. One wired backhaul node serves an entire building.
Rooftop-to-rooftop relay links bridge connectivity across a property portfolio without ISP coordination. Remote management via encrypted overlay networks means zero on-site visits for routine diagnostics or configuration changes.
Our validated proof-of-concept deployment in a 117m × 76m underground parking structure at the University of Chicago achieved full coverage with 3 mesh nodes — replacing a 6-unit conventional setup and eliminating all dead zones measured at 12 test points.
RSSI measured at 12 test points across 2.4 GHz and 5 GHz bands. Obstacle mapping identifies elevator banks, structural columns, and signal reflection zones.
Temporary bracket mounts near existing power outlets. No conduit, no surface penetration. Core node connects to building LAN. Branch nodes operate wirelessly.
Throughput measured at 100–120 Mbps on first hop. 2-hop environment delivered ~52 Mbps — consistent with spec. Average RSSI ≥ −70 dBm across all 12 test points.
We deploy MikroTik for rooftop relay backhaul and PicoCELA PCWL-0510 units for dense indoor mesh. Each environment gets the right hardware for its RF characteristics — not whatever fits a single-vendor contract.
Mesh nodes continuously evaluate link quality across 2.4 GHz and 5 GHz bands. When a backhaul path degrades, the network automatically promotes an alternate hop path — maintaining connectivity without operator intervention.
A Raspberry Pi 5 running 802.1X handles enterprise authentication (eduroam), NAT routing, and ZeroTier overlay access — enabling remote management without exposing public IPs across any node in the network.
Unlike hub-and-spoke WiFi, every Variant node is a relay point. Adding coverage to a new area doesn't require new cabling runs — it requires one new node within wireless range of an existing one. The network grows organically with the property.
The incumbent ISPs built for the street level. They designed for easy runs, permissive environments, and density that makes the unit economics work. Basements don't make their model. Garages don't either.
Variant Networks was designed for the spaces that fall through — the dead zones that are becoming safety liabilities as EV charging, license plate recognition, and emergency communication systems demand reliable connectivity underground.
Our long-term architecture is a distributed mesh that spans rooftops, garages, and common areas across a commercial portfolio — remotely managed, locally owned, and resilient enough to operate independently of any single ISP.
Partner with us →Deployed in partnership with
We start with a free site assessment. Share your property details and we'll map the deployment architecture before any commitment.
No obligation. Typical response within 24 hours.
